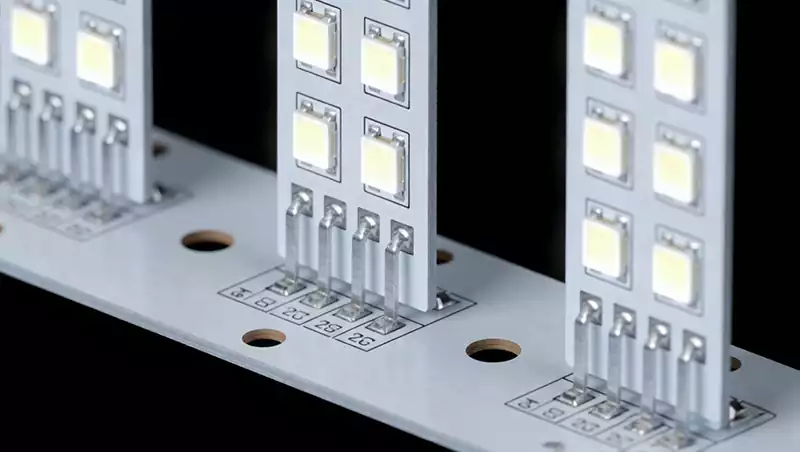

Ceramic substrates, as critically important materials within PCBs, play a pivotal role in enhancing PCB performance through their unique physical and chemical properties. Among these, aluminium oxide (Al₂O₃) and aluminium nitride (AlN) are the two most commonly used ceramic substrates. While they share a similar appearance and overlapping applications, they exhibit significant differences in core dimensions such as thermal conductivity, insulation properties, and cost, each demonstrating distinct advantages in different application scenarios.
Fundamental Differences Between Aluminium Oxide (Al₂O₃) and Aluminium Nitride (AlN) Ceramic Substrates
Thermal conductivity represents the most fundamental distinction between these ceramic substrates and is the primary consideration in material selection. Aluminium oxide typically exhibits a thermal conductivity coefficient ranging between 20–30 W/(m·K), classifying it as a medium-to-low thermal conductivity ceramic. This suffices for heat dissipation requirements in standard power devices, such as conventional sensors and low-voltage electrical components within PCB substrates.
Aluminium nitride exhibits a thermal conductivity of 150–230 W/(m·K), representing 5–8 times that of aluminium oxide and approaching the thermal conductivity levels of certain metals. This enables rapid dissipation of heat generated by high-power devices, preventing thermal ageing and failure. It is suitable for high thermal flux density applications such as high-power LEDs, high-frequency modules, and automotive electronics.
Regarding insulation properties, both materials satisfy PCB substrate insulation requirements, though with distinct characteristics. Aluminium oxide exhibits a volume resistivity of approximately 10¹⁴–10¹⁶ Ω·cm, offering high dielectric strength and withstanding elevated breakdown voltages, making it suitable for high-voltage insulation applications. Aluminium nitride exhibits a volume resistivity of approximately 10¹³–10¹⁵ Ω·cm, offering slightly lower insulation performance than aluminium oxide. Nevertheless, it adequately fulfils requirements for the vast majority of PCB applications. Moreover, in high-frequency environments, its insulation stability surpasses that of aluminium oxide, demonstrating reduced susceptibility to insulation ageing.
Mechanical properties and machining complexity directly impact PCB manufacturing feasibility and mass production costs. Aluminium oxide exhibits high hardness and moderate toughness, with mature processing techniques enabling straightforward drilling, cutting, metallisation, and other PCB fabrication steps. It achieves high yield rates in mass production, making it suitable for large-scale manufacturing. Aluminium nitride exhibits slightly lower hardness than aluminium oxide but is more brittle, prone to chipping and cracking during processing. It demands higher precision in machining equipment and more sophisticated techniques, consequently increasing processing costs. This cost pressure becomes particularly pronounced in small-batch production runs.
Cost-wise, aluminium oxide holds an absolute advantage. Its readily available raw materials and mature production processes result in a unit price of merely one-third to one-fifth that of aluminium nitride, making it suitable for cost-sensitive, high-volume standard projects. Aluminium nitride, however, is more expensive due to scarce raw materials and complex production processes. It is considered only when high-performance requirements cannot be met by aluminium oxide, positioning it as a premium substrate selected on an as-needed basis.
Furthermore, their thermal expansion coefficients differ significantly. Aluminium oxide exhibits a coefficient of approximately 7-8 ppm/℃, contrasting markedly with copper foil’s coefficient (around 16.5 ppm/℃). This disparity can lead to interface delamination and cracking during high-temperature soldering or prolonged exposure to elevated temperatures. Aluminium nitride exhibits a thermal expansion coefficient of approximately 4.5–5.5 ppm/℃, which more closely matches that of silicon chips. This superior thermal compatibility enhances the long-term reliability of PCBs, making it suitable for high-temperature and prolonged operational environments.
Aluminium oxide (Al₂O₃) ceramic substrates are the preferred choice in scenarios where cost-effectiveness takes precedence and performance requirements are moderate. For standard power PCB projects with power ratings ≤50W where components generate minimal heat and no specialised thermal management is required—such as low-voltage sensors, conventional instrumentation, and household electronics—aluminium oxide adequately fulfils requirements. It ensures both insulation integrity and reliability while maintaining cost control.
In high-voltage insulation applications, such as high-voltage power supply PCBs or insulating liners, alumina’s high dielectric strength and breakdown voltage effectively prevent high-voltage breakdown, safeguarding equipment integrity. For mass-production projects demanding high manufacturing yield and stringent cost control, alumina’s mature processing techniques enhance production efficiency and reduce defect rates, making it suitable for large-scale delivery scenarios.
It should be noted that while aluminium oxide offers high cost-effectiveness, it cannot meet requirements in scenarios involving high heat flux density, high frequencies, or prolonged high-temperature operation. Forced selection may lead to component overheating and reduced PCB lifespan, ultimately increasing long-term maintenance costs.
AlN ceramic substrates should be prioritised in scenarios defined by ‘performance-driven requirements where no alternative exists’. For high-power PCB projects exceeding 50W where components generate significant heat—such as high-power LED modules, high-frequency power amplifiers, and automotive power modules—AlN’s superior thermal conductivity enables rapid heat dissipation, preventing thermal failure. In high-frequency, high-temperature environments—such as aerospace PCBs and industrial high-frequency equipment—AlN’s stable high-frequency insulation and excellent thermal matching ensure long-term reliability under extreme conditions. For high-precision, high-reliability applications—like medical devices and precision instrument PCBs—AlN’s low thermal expansion coefficient minimises deformation from temperature fluctuations, enhancing PCB accuracy and stability.
It is worth noting that aluminium nitride carries a higher cost. Where projects lack specific performance requirements, its use should not be indiscriminate. For instance, in common household electronics or low-power sensors, aluminium oxide suffices to meet requirements. Unnecessary adoption of aluminium nitride merely inflates project costs and constitutes a waste of resources.
Furthermore, hybrid scenarios may adopt a ‘zone-specific selection’ approach: employing alumina nitride substrates in core PCB heat-generating zones while using alumina substrates in non-heat-generating areas. This strategy satisfies thermal dissipation demands in critical zones while controlling overall costs, making it suitable for mid-to-high-end projects with balanced performance and cost requirements.
Processing Considerations for Aluminium Oxide (Al₂O₃) and AlN Ceramic Substrates
Once the substrate type is selected, adapting the processing techniques is crucial to ensuring PCB performance. Given the differing machinability characteristics of aluminium oxide and aluminium nitride, processing methods must be tailored accordingly to prevent PCB failure due to improper handling.
For aluminium oxide ceramic substrates, standardised operations are the primary focus. Alumina processing employs mature techniques: diamond drill bits should be used for drilling, with controlled speed and pressure to prevent burrs or chipping. During metallisation, thick-film printing or sputtering processes ensure tight bonding between the metal layer and ceramic substrate, avoiding delamination. When soldering, carefully control temperature and duration to prevent substrate cracking from excessive heat. Automated processing can be adopted for mass production to enhance yield and efficiency.
Processing AlN ceramic substrates requires stringent control of machining precision and process parameters. Given its high brittleness, high-precision diamond drill bits must be used during drilling, with reduced speeds and pressures to minimise chipping and cracking risks. During metallisation, optimise the metal layer formulation to enhance adhesion between the metal layer and substrate, preventing delamination during subsequent use. For soldering, employ low-temperature processes, maintaining temperatures below 400°C to prevent substrate deformation or cracking. Additionally, implement dust and vibration control measures throughout processing to safeguard the substrate.
Whether using alumina or AlN ceramic substrates, select PCB manufacturers with corresponding processing capabilities to ensure compliance with manufacturing standards and prevent performance failures due to processing deviations.
Aluminium oxide and AlN ceramic substrates do not possess inherent superiority or inferiority; their suitability depends solely on project requirements. Aluminium oxide, with its ‘high cost-effectiveness and mature manufacturing processes,’ remains the preferred choice for medium-to-low power applications, standard insulation needs, and mass production projects. Aluminium nitride, characterised by its ‘superior thermal conductivity and optimal compatibility,’ excels in demanding scenarios such as high power, high frequency, and elevated temperatures, making it the appropriate selection where required.
