The drone antenna is a multifunctional component that facilitates video transmission, remote control, GPS reception, data transfer, FPV experience, signal range extension, and signal quality enhancement. Its importance in ensuring the drone’s smooth operation and functionality cannot be overstated.
How the Drone Antenna Functions
The drone antenna essentially receives and transmits electromagnetic waves, acting as the drone’s ears and mouth. When functioning like ears, the antenna can listen to electromagnetic waves arriving from all directions or focus on signals from a single direction. Upon receiving these waves, conductors within the antenna generate induced currents. After specialised processing, the drone instantly receives and interprets the command information, executing corresponding actions such as accelerating, decelerating, hovering, or ascending. Upon completing the command, the antenna transmits corresponding information back via electromagnetic waves to ground equipment and other systems.
Antennas play a pivotal role in expanding a drone’s operational range, serving as the critical component for transmitting and receiving radio signals between the drone and its remote controller or ground station. Drones are equipped with various antenna types, primarily divided into omnidirectional and directional antennas.
Omnidirectional antennas transmit and receive signals in all directions, providing 360-degree coverage. Commonly found in consumer-grade drones, they offer relatively balanced signal strength across all directions. However, compared to directional antennas, their coverage range is comparatively limited.
Directional antennas concentrate signal transmission and reception in specific directions, enabling longer coverage distances and stronger signal intensity. Such antennas are typically employed in professional-grade drones or scenarios requiring long-range control. Due to their characteristics, directional antennas impose stricter requirements on the drone’s orientation and position; optimal signal strength is only achieved when the antenna is aligned with the remote controller or ground station.
Beyond antenna type, the frequency band utilised for communication between the drone and remote controller also impacts coverage range. Most consumer-grade drones utilise the 2.4 GHz band, which strikes a favourable balance between signal coverage and penetration capability. However, this band is widely used and susceptible to interference from other devices such as Wi-Fi routers and Bluetooth equipment. Professional-grade drones typically employ the 5.8 GHz band, which experiences relatively less interference but offers shorter range and weaker signal penetration.
Additionally, the drone’s flight environment impacts antenna coverage. Obstacles like buildings, trees, and hills can block or weaken radio signal propagation, thereby reducing the effective coverage range. Flying in open areas with clear line-of-sight between the drone and its controller or ground station maximises coverage.
Applications of drone antennas:
- Video transmission: Drones are typically equipped with cameras to capture aerial footage. Antennas play a crucial role in transmitting real-time video from the drone to the remote controller or ground station. This enables operators to monitor the drone’s flight and capture high-quality footage.
- Remote control signals: Drones commonly utilise radio transmitters for remote operation. The antenna on the drone receives control signals from the remote controller, allowing the operator to manoeuvre the drone in different directions and control its various functions.
- GPS Reception: Many drones utilise GPS (Global Positioning System) technology to determine their location and navigate accurately. The drone antenna receives signals from GPS satellites, enabling the drone to maintain its position, follow pre-set flight paths, or automatically return to a specific location.
- Telemetry Data: Drones gather diverse data during flight, such as altitude, speed, battery level, and temperature. This information is transmitted via antenna back to the operator or ground station. It assists operators in monitoring drone performance and making informed decisions during flight.
- FPV (First-Person View): FPV is a popular drone feature allowing operators to view real-time video footage from the drone’s camera, as if seated within the aircraft. The drone antenna transmits this video signal to the operator’s FPV goggles or display, delivering an immersive flying experience.
- Signal Range Extension: Certain drone antennas are engineered to extend the range of control signals and video transmission. Employing advanced technologies like directional antennas or signal amplifiers, these enhance signal strength and coverage, enabling longer flight distances and extended video transmission.
- Signal Quality Enhancement: In areas with poor signal reception, such as urban environments or locations with high interference, high-quality drone antennas can improve signal strength and stability. This ensures a reliable and uninterrupted connection between the drone and its remote controller or ground station.
Key Considerations in Drone Antenna Design
Design Critical Factors
Frequency Band and Functional Matching
Select appropriate frequency bands based on the UAV’s communication, positioning, and perception requirements. For example:
Video Transmission Antenna: Typically operates in the 2.4GHz and 5.8GHz bands for high-definition video transmission.
Positioning Antenna: Supports frequency bands for satellite navigation systems such as GPS and BeiDou (e.g., 1166MHz-1610MHz).
Sensing Antenna: Millimetre-wave radar antennas typically operate in the 24GHz and 60GHz bands for obstacle avoidance and terrain perception.
Polarisation Modes
Linear Polarisation: Such as horizontal or vertical polarisation, suitable for signal transmission in specific directions. Features simple structure and lower cost.
Circular Polarisation: Offers strong anti-interference capability and adapts to changes in UAV attitude. Commonly used in scenarios requiring high signal stability (e.g., FPV racing).
Radiation Pattern Characteristics
Omnidirectional Antenna: Radiates a spherical or cylindrical pattern, suitable for communication between UAVs and remote controllers, ensuring signal connectivity at various angles.

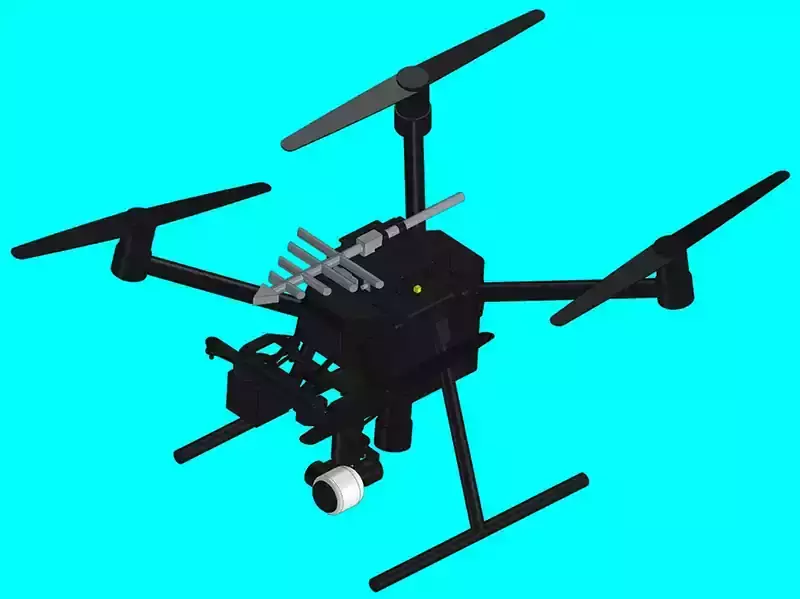

Directional Antennas: Employed for long-range video transmission or directional signal enhancement, such as Yagi antennas, which increase gain and transmission distance.
Miniaturisation and Lightweighting
Drones impose stringent weight and space constraints, necessitating compact antenna designs like microstrip or slot antennas, balancing performance and cost.
Interference Resistance and Stability
Electromagnetic interference is minimised through optimised antenna structures, integrated filters, or band-selective algorithms, ensuring stable operation in complex environments.
Common Antenna Types and Design Characteristics
Video Transmission Antennas
Dipole Antennas: Simple in structure, commonly mounted on arms or landing gear, providing horizontally or vertically polarised signals.
Circular Polarisation Antenna: Examples include quad-arm helical antennas, suitable for scenarios demanding high signal stability with strong interference resistance.
Positioning Antenna
Ceramic Antenna: Miniaturised with low profile, featuring a directional pattern pointing towards the zenith, suitable for consumer-grade drones.
High-Precision Positioning Antenna: Examples include RTK antennas, requiring centimetre-level positioning accuracy, often employing multi-band designs.
Perception Antennas
Millimetre-wave radar antennas: Operating at 24GHz or 60GHz bands for obstacle avoidance and terrain following, employing microstrip or array antenna designs.
ADS-B Antenna: Receives signals from civil aircraft at 1090MHz, typically mounted on both sides of the nose.
Integrated Antenna
Platform-Integrated Antenna Design: Antennas are fused with the UAV’s structural framework—such as wing spars or main beams—achieving functional and load-bearing integration to reduce weight and enhance stability.
Though compact, drone antennas bear core functions including communication, positioning, and perception. Their design must balance performance, weight, and anti-interference capabilities, serving as the ‘invisible wings’ for stable flight. With technological advancements, future antennas will become smarter and more efficient, expanding the application horizons for unmanned aerial vehicles.
