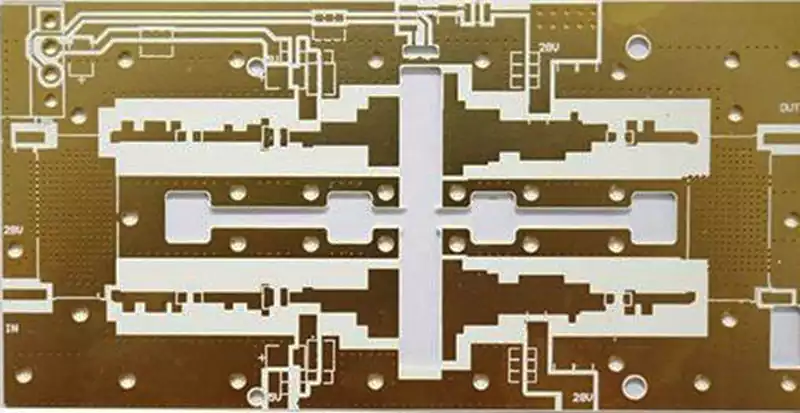

Due to their extremely low surface energy and high chemical inertness, achieving reliable ink adhesion on PTFE substrates has long been a key challenge in the manufacturing process. To ensure a robust and reliable coating, one cannot rely on a single technical approach; instead, systematic process design and control are required, encompassing everything from material compatibility and surface treatment to curing control.
The degree of compatibility between the ink and the PTFE substrate is the fundamental factor determining the strength of adhesion. If the wrong type of ink is selected, subsequent delamination issues will be difficult to avoid, even with the most refined manufacturing processes. The key to selecting PTFE PCB ink lies in overcoming the low surface energy and high inertness of the substrate; priority should be given to specialised formulations that offer high adhesion, temperature resistance and chemical resistance, whilst also meeting process compatibility and environmental requirements.
When selecting materials, priority should be given to modified inks developed specifically for PTFE. These inks typically incorporate fluorinated resins and polar functional groups to establish a degree of chemical bonding with the PTFE surface, whilst enhancing the coating’s flexibility and adhesion. For the resin system, fluorocarbon-modified epoxy or polyimide types are recommended, as their polar nature promotes better interfacial compatibility and allows for the formation of a dense, stable film after curing. With regard to pigments, high-temperature-resistant inorganic systems with good dispersibility should be selected to avoid coating defects caused by decomposition during high-temperature curing or welding; as for diluents, slow-evaporating specialised solvents should be used to improve levelling properties and prevent pinholes and reduced adhesion.
When selecting materials, priority should be given to modified inks developed specifically for PTFE. These inks typically incorporate fluorinated resins and polar functional groups to establish a degree of chemical bonding with the PTFE surface, whilst enhancing the coating’s flexibility and adhesion. For the resin system, fluorocarbon-modified epoxy or polyimide types are recommended, as their polar nature promotes better interfacial compatibility and allows for the formation of a dense, stable film after curing. With regard to pigments, high-temperature-resistant inorganic systems with good dispersibility should be selected to avoid coating defects caused by decomposition during high-temperature curing or welding; as for diluents, slow-evaporating specialised solvents should be used to improve levelling properties and prevent pinholes and reduced adhesion.
Key performance indicators must be strictly controlled. Adhesion must meet Grade 1 requirements of the GB/T 9286-1998 standard, i.e. no flaking after cross-hatch testing; temperature resistance must pass cyclic testing from -55°C to 150°C without cracking; and chemical resistance must withstand corrosion from flux and cleaning agents. Furthermore, a matt or gloss finish should be selected based on aesthetic and functional requirements, and the ink must be compatible with the specific printing method (e.g. screen printing or pad printing). It is particularly important to note that FR-4 general-purpose inks must not be used as a substitute for PTFE-specific inks, as such materials only form a weak physical bond and are highly prone to failure under thermal shock or environmental stress. At the same time, preference should be given to products from reputable brands with consistent quality to avoid the risk of inconsistencies caused by batch variations.
As PTFE has extremely low surface energy and is highly chemically inert, pre-treatment is a critical step in enhancing adhesion; the key lies in increasing surface energy and creating a micro-rough surface structure. First, thorough cleaning is required to remove oil, particles and oxides. It is recommended to use a neutral cleaning agent in conjunction with ultrasonic cleaning at 40–60 kHz for 10–15 minutes, followed by rinsing with deionised water and drying at 80–100°C for 20–30 minutes to ensure no residual moisture remains. Strong acid or alkali systems should be avoided to prevent damage to the substrate surface.
On this basis, surface activation treatment should be carried out. Plasma treatment is the current mainstream approach; using an O₂/CF₄ gas system can effectively break surface C–F bonds, introduce polar groups such as hydroxyl and carboxyl groups, and form micro- and nano-scale roughness structures, thereby significantly improving wettability. Typical process parameters are: power 100–150 W, treatment time 3–5 minutes, gas flow rate 20–30 sccm; the surface energy after treatment should reach 38 mN/m or higher. For applications requiring high reliability, silane coupling agents may be introduced to further enhance interfacial bonding strength through a ‘molecular bridging’ mechanism. The concentration of the coupling agent should be controlled at 5%–8%, and curing is completed by drying at 80°C for approximately 15 minutes after coating.
It should be noted that the pre-treated substrate should proceed to the printing stage as soon as possible; it is recommended that this be completed within one hour to avoid surface energy decay and secondary contamination.
The printing stage also has a decisive influence on adhesion. It is recommended to use a stainless steel screen with a mesh count of 300–400 and a tension of 25–30 N/cm²; the photoresist thickness is typically 10–15 μm. Regarding printing parameters, the screen-to-substrate distance should be maintained between 0.5 and 1.0 mm, the squeegee angle between 45° and 60°, and the speed between 50 and 80 mm/s, to ensure uniform ink transfer and prevent ink build-up or sagging.
Ink formulation must be carried out strictly in accordance with specifications. The amount of thinner added should be controlled within the range of 5% to 10%; too much will reduce film thickness and adhesion, whilst too little will affect flow. During the mixing process, the ink must be thoroughly stirred (for ≥5 minutes) and left to stand for 10 to 15 minutes to eliminate air bubbles, thereby preventing printing defects.
Environmental control must not be overlooked. It is recommended to maintain a temperature of 23±2°C and a humidity of 45%–65%, whilst ensuring a clean environment. Abnormal temperature or humidity levels, or environmental contamination, will directly affect the ink’s wetting and adhesion performance. After printing, the substrate should be left to stand for 15–20 minutes to allow the ink to level fully and release solvents before proceeding to the curing stage.
The curing process is a critical stage for forming a stable paint film and enhancing adhesion. A stepwise heating strategy is recommended: first, preheat by raising the temperature at a rate of 2–3°C/min to 80–100°C and hold for 20–30 minutes to allow for gradual solvent evaporation; subsequently, raise the temperature to 150–180°C and maintain this for 60–90 minutes to complete resin cross-linking; finally, cool slowly at a rate of 1–2°C/min to room temperature to minimise thermal stress. Temperature uniformity within the oven must be maintained within ±5°C, and adequate ventilation must be ensured to prevent solvent accumulation from affecting curing quality.
Quality verification must be carried out after curing. Adhesion can be assessed using a cross-hatch and tape test; hardness and abrasion resistance should also be tested to ensure the coating possesses sufficient stability for subsequent use. Should peeling or inadequate performance occur, the curing parameters should be reviewed and adjusted.
Controlling the adhesion of PTFE PCB ink is a systematic process involving multiple stages, including material selection, surface treatment, printing processes and curing control. Any oversight in a single stage may lead to ultimate failure. Only through meticulous control throughout the entire process can stable ink adhesion be ensured, meeting the demands of high-reliability applications.
