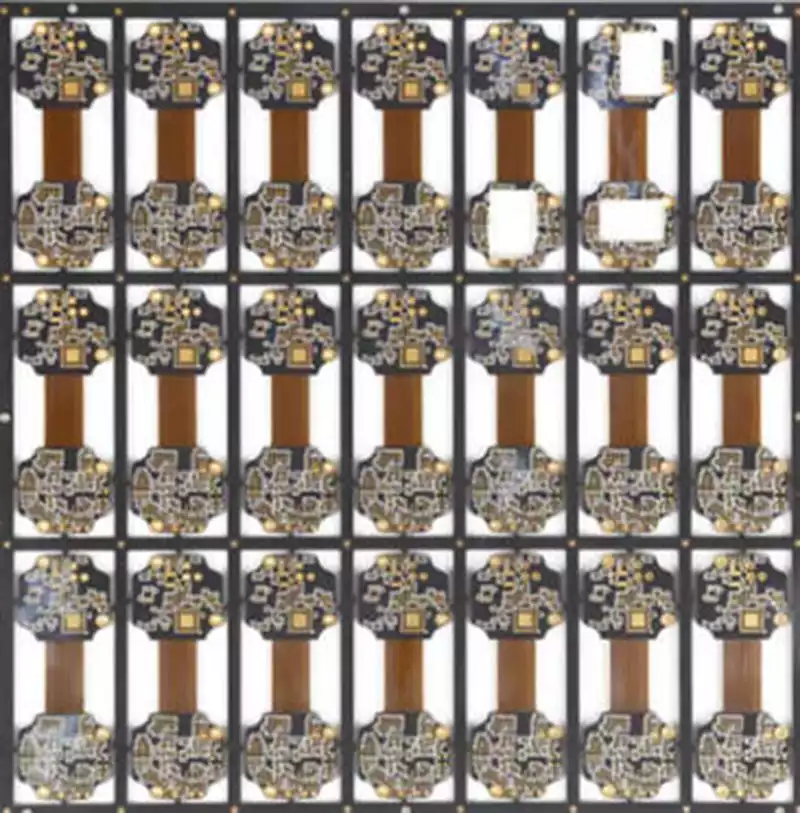

In the evolution of HDI circuit boards towards higher density, micro-blind via filling has emerged as a core manufacturing challenge. Electroplated copper via filling technology resolves the quality and reliability issues inherent in traditional processes by converting micro-vias into solid copper pillars, thereby establishing low-loss conductive pathways. This provides critical support for high-density interconnections in multilayer boards.
The core value of electroplated copper via filling lies in creating high-quality interlayer interconnect channels for HDI circuit boards. Through electrochemical deposition, micro-vias are filled with solid copper pillars, forming low-resistance, highly stable conductive pathways.
Compared to hollow vias, solid copper pillars significantly reduce signal transmission loss, minimise reflections and impedance mismatch, making them particularly suitable for high-speed signal transmission scenarios such as 5G communications and AI servers. Test data indicates that post-copper-plating via filling reduces via resistance from 18mΩ in conventional processes to 5mΩ, while improving impedance uniformity by 25%. This effectively resolves signal attenuation issues caused by hollow voids.
If micro-blind vias in HDI circuit boards remain unfilled, they create stress concentration points within the structure. During subsequent processes such as lamination and etching, these areas are prone to via wall cracking or interlayer delamination. During end-device operation, thermal cycling and mechanical vibration further accelerate defect propagation, ultimately leading to circuit failure.
Solid copper pillars formed through electroplated copper via filling effectively distribute stress and enhance the bonding strength between the via walls and substrate. Simultaneously, the smooth surface created by filling provides favourable conditions for precision circuit formation, preventing line defects caused by surface irregularities. According to industry-validated standards, HDI circuit boards with electroplated copper-filled vias exhibit no cracking in the copper layer during extreme temperature cycling tests from -40°C to 125°C, meeting the requirement for a service life exceeding 15 years.
Enhancing Yield Rates and Cost Control
Blind via underfilling and pitting represent common quality challenges in HDI manufacturing. Some manufacturers experience underfilling rates as high as 8% to 15% during mass production, resulting not only in product scrap but also incurring substantial rework costs.
Electroplating copper via-filling technology achieves optimal filling results through precise control of additive ratios and plating parameters, enabling accelerated deposition at the bottom while moderately inhibiting growth at the opening. This ensures void-free and dent-free filling. The optimised process reduces underfilling rates to near-zero levels. Furthermore, this process seamlessly integrates with laser drilling and electroless copper plating, streamlining production stages and lowering overall manufacturing costs. Data indicates that after implementing this optimised process, one HDI manufacturer elevated product yield from 85% to 98%, achieving annual rework cost savings in the tens of millions.
Supporting High-Density Miniaturisation
As smartphones, smart wearables, and automotive electronics become increasingly slim, HDI circuit board routing density continues to rise. Blind via diameters have shrunk below 0.08mm, with aspect ratios exceeding 1:1, rendering traditional processes inadequate.
Electroplated copper via filling precisely meets micro-via filling demands. Through optimised processes such as pulse plating and vacuum assistance, the filling rate for 0.08mm micro-holes exceeds 93%, while maintaining controllable copper thickness. This enables the layered design of multi-layer, multi-level HDI boards. For instance, the manufacturing of HDI boards at any layer relies on this technology to achieve stacked-hole structures over blind holes, significantly enhancing routing density and accommodating more circuit functions within a smaller space.
Precision process control is paramount
Electrolytic copper via filling relies on the synergistic interaction of additives and plating parameters. The complete process comprises three key stages:
Via metallisation: Following deburring and electroless copper plating, a thin copper layer is deposited on the via walls as a conductive seed layer. This stage is critical for filling success; microscopic defects or insufficient reactivity in the copper deposit directly cause subsequent filling failures such as gaps or voids.
Electroplating Filling: Precise control of bath composition, current waveform, temperature, and other parameters is essential. Additive ratios prove particularly critical—insufficient accelerators reduce deposition rates, while excessive levellers inhibit filling efficacy. Imbalances among these three elements directly compromise filling morphology.
Post-Processing: Cleaning, drying, and surface grinding ensure a smooth filled surface, laying the foundation for subsequent processes.
In practical production, processes require differentiation based on application scenarios: automotive electronics necessitate low-stress plating to enhance fatigue resistance; consumer electronics demand controlled copper thickness to meet slimline requirements; military-grade products require advanced techniques like vacuum-assisted plating to ensure a fill rate exceeding 99%.
Continuously Evolving Technical Directions
Electrolytic copper plating technology and HDI manufacturing capabilities advance in tandem. Current innovation focuses on: continuously optimising additive formulations to enhance filling efficiency and environmental sustainability; the gradual adoption of pulse reverse plating and vacuum-assisted filling; and replacing traditional electroless copper plating with organic conductive films, which reduce wastewater discharge while improving hole-bottom adhesion. These advancements enable electroplated copper filling to better meet high-end HDI manufacturing demands, driving high-quality development within the PCB board industry.
For manufacturers, mastering core copper-plating via-filling technology is pivotal to enhancing market competitiveness. This requires not only advanced equipment but also specialised technical teams and robust quality control systems. From micro-etching control to parameter calibration, surface grinding to full-process monitoring, each stage must strictly adhere to industry standards to ensure stable and reliable filling quality.
Electroplated copper via filling, though appearing as a single process, permeates the core stages of HDI circuit board manufacturing, linking multiple processes including drilling, lamination, and etching. Its function has long transcended the basic scope of ‘filling holes,’ becoming a decisive factor in determining the performance, reliability, and production efficiency of HDI boards. As electronic devices advance relentlessly towards higher density, enhanced performance, and miniaturisation, the significance of electroplated copper via filling technology grows ever more pronounced. It stands as both the ‘core secret’ of HDI circuit board manufacturing and a vital pillar supporting the PCB industry’s breakthrough of technical bottlenecks and transition towards high-end specialisation.
Looking ahead, as demand for high-end electronic devices continues to grow, the complexity of HDI circuit boards will steadily increase. PCB manufacturers must maintain sustained investment in research and development to overcome technical challenges such as filling micro-holes with high aspect ratios and achieving fill without voids. This will ensure electroplated copper-clad laminate technology better aligns with industry demands, providing robust manufacturing support for the global electronics sector’s advancement.
