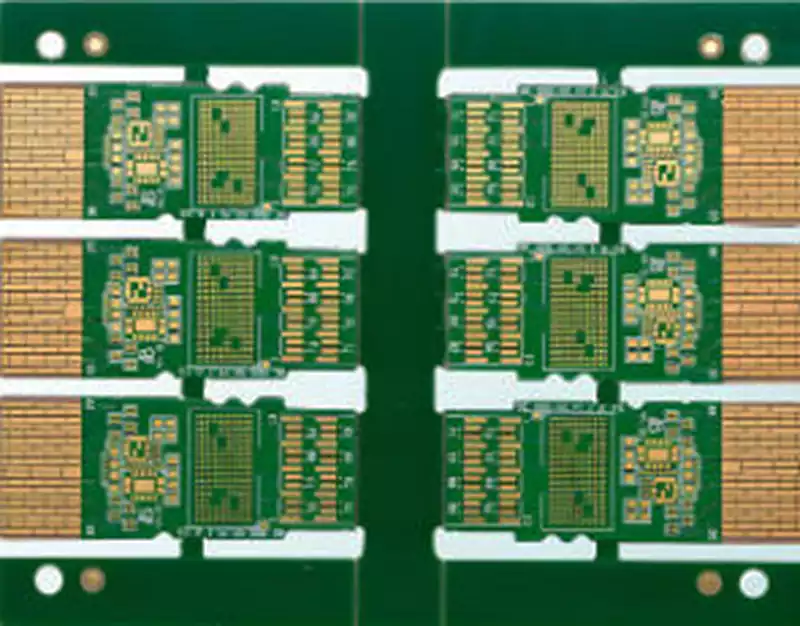

Against the backdrop of 5G base stations evolving towards millimetre-wave technology, antennas—as key components for signal transmission and reception—directly influence network coverage capabilities. PTFE PCB (polytetrafluoroethylene printed circuit board) is a crucial substrate that underpins the high-frequency performance of antennas. When millimetre-wave signals such as 28GHz and 39GHz are transmitted within a base station, PTFE PCB provides a low-loss transmission path for the signals, thanks to its low dielectric loss and stable dielectric constant.
The Critical Need for High-Frequency Materials in 5G Base Station Antennas
The primary distinction between 5G and 4G lies in the use of high-frequency signals. Whilst conventional FR-4 laminates can still be used to some extent in the sub-6GHz band, the millimetre-wave band (above 24GHz) sees wavelengths reduced to the millimetre range, placing higher demands on PCB substrates.
The limitations of traditional FR-4 laminates at high frequencies are quite evident: their dielectric loss factor (Df) is typically around 0.02, meaning that for every 10 centimetres of signal transmission, losses may exceed 1 dB; the dielectric constant (Dk) fluctuates significantly, being markedly affected by temperature and frequency, with a temperature coefficient of variation (TC) of over 5%, which can easily lead to signal phase shifts and impedance mismatch. Furthermore, FR-4 generates polarisation loss in high-frequency electromagnetic fields, converting signal energy into heat, which reduces transmission efficiency and increases heat generation in base stations.
At the same time, 5G base station antennas must operate outdoors in all weather conditions, with an operating temperature range generally spanning from -40°C to 85°C; Massive MIMO antenna arrays require synchronous transmission of multi-channel signals, necessitating precise impedance control; and under high-density routing, the risks of signal crosstalk and reflection increase. These factors collectively drive the demand for high-performance substrates such as PTFE PCBs.
Core Advantages of PTFE PCBs
1.Ultra-low loss
At 10 GHz, the Df value of PTFE can be controlled to within 0.001, and it remains around 0.002 in the 40 GHz and above frequency bands, far lower than the 0.02 of FR-4, representing a reduction of over 80% compared to low-loss FR-4. This characteristic reduces signal energy attenuation during transmission, enabling 28GHz millimetre-wave signals to cover greater distances with lower loss, whilst simultaneously reducing heat dissipation demands on base stations.
2.Stable Dielectric Constant
The dielectric constant of PTFE remains stable between 2.0 and 2.2, with fluctuations in Dk of less than ±0.02 across the 1–100GHz range; The temperature coefficient of dielectric constant (TCDk) is approximately -125 ppm/°C, which is one order of magnitude lower than that of FR-4, making it less prone to frequency drift in wide temperature environments. For the multi-channel synchronisation requirements of Massive MIMO antennas, this stability helps ensure signal phase consistency and beamforming accuracy.
3.Low moisture absorption and wide temperature tolerance
PTFE has a water absorption rate of less than 0.01%, far lower than the 0.1%–0.3% of FR-4, making it less prone to changes in dielectric properties due to moisture absorption in high-humidity environments. Its operating temperature range is -200°C to +260°C, ensuring stable electrical and physical properties under all-weather outdoor conditions.
4.Facilitates Precise Impedance Control
Millimetre-wave signals demand high precision in impedance control, with tolerances typically required to be within ±5%. The combination of PTFE substrate with ultra-low-profile copper foil (Ra ≤ 0.3 μm) reduces conductor loss. Furthermore, lamination and etching processes ensure consistency in trace width and thickness, enabling impedance matching and minimising signal reflection and crosstalk.
The Value of PTFE PCBs in 5G Base Station Antennas
1.Supporting the wiring of Massive MIMO antenna arrays
5G macro base stations commonly employ 64-channel and 128-channel Massive MIMO antennas, where the spacing between antenna elements must be reduced to less than λ/2 (approximately 5.4 mm at 28 GHz), requiring the PCB to possess high-density routing capabilities. PTFE PCBs enable fine-pitch line width and spacing designs; combined with their low dielectric properties, they allow the feed network to be laid out within a limited space whilst maintaining consistent signal loss across all channels.
2.Reducing Millimetre-Wave Signal Transmission Loss
Millimetre-wave signals attenuate rapidly when propagating through air, with atmospheric loss exceeding 10 dB per 100 metres. PTFE PCBs can reduce end-to-end signal loss and extend effective coverage distances, thereby reducing the number of base stations required and lowering network deployment costs.
3.Enhancing long-term antenna reliability
Base station antennas are exposed to the outdoors for extended periods, facing environmental factors such as salt spray, ultraviolet radiation, and temperature cycling. When reinforced with glass fibre or ceramic fillers, PTFE exhibits excellent chemical resistance and mechanical strength. Its coefficient of thermal expansion is well-matched to that of copper foil, reducing warping of microstrip lines during high-temperature reflow soldering and ensuring the long-term stable operation of the antenna.
Manufacturing Challenges and Common Improvement Methods for PTFE PCBs
1.Drilling Process
PTFE has a low softening point (327°C), and conventional high-speed drilling can easily result in resin residue and burrs on the hole walls, affecting the quality of the metallised holes. A low-speed peck drilling process, combined with specialised drill bits and a cooling system, can be employed to achieve smoother hole walls.
2.Surface Treatment and Bonding with Copper Foil
The PTFE surface is highly inert, resulting in poor adhesion to copper foil; direct etching can easily lead to delamination. Surface roughness (Ra) can be increased to 0.5–1 μm through etching with a sodium naphthalene solution or plasma bombardment, thereby enhancing the bond strength with the copper foil; At the same time, ultra-low-profile (HVLP) copper foil should be prioritised to reduce conductor loss.
3.Laminating and Hybrid Laminating Techniques
5G antennas often employ multi-layer structures, sometimes requiring hybrid lamination with FR-4 support layers to balance cost and performance. During the lamination process, PTFE bubbling or delamination must be avoided; hybrid structures can be optimised for signal transmission paths through the design of dielectric constant gradients.
Why is PTFE PCB the optimal solution?
Given the diverse range of high-frequency PCB materials available, the industry frequently compares PTFE with ceramic-filled resins, modified FR-4, LCP and other materials; however, in the context of 5G base station antennas, the advantages of PTFE PCB remain unrivalled.
| Material type | Dielectric constant (Dk) | Dissipation factor (Df) | Coefficient of thermal expansion (ppm/°C) | Cost coefficient (FR-4=1) | Suitable scenarios |
| PTFE | 2.0-2.2 | 0.0005-0.001 | 12-30 | 5-8 | 5G millimetre-wave base station antennas, phased-array radars |
| Ceramic-filled resin | 3.3-3.8 | 0.003-0.005 | 40-60 | 3-5 | Sub-6GHz base stations, RF modules |
| Modified FR-4 | 3.5-4.0 | 0.005-0.01 | 80-120 | 1-2 | 4G base stations, low-power IoT devices |
| LCP | 2.9-3.2 | 0.001-0.002 | 20-40 | 10+ | Mobile millimetre-wave AiP, flexible antennas |
Thanks to its low loss, stable dielectric constant and weather resistance, PTFE PCB has become a practical choice of substrate material for the high-frequency performance of 5G base station antennas.
